Cal Fast BB Furnace

Cal Fast BB Furnace
Business Type Manufacturer, Exporter, Supplier, Retailer
Working Temperature 50 to 350°C
Instrument Weight 4 Kg (without packing)
Power Requirement 230 VAC, 500 W
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Computer Interface
RS - 232 (Optional)
Time to Reach Max. Temperature
20 Mins
Temperature Resolution
0.1°C
Stability (15 min)
±0.1°C
Controlling Sensor
RTD (Pt 100)
Method of Control
Digital self tuned PID Controller
BB Cavity Aperture
60 mm
BB Cavity Emissivity
0.97 (±0.02)
Operating Temperature
20 to 45°C
Dimensions
120(H) x 180(W) x 230(D) mm

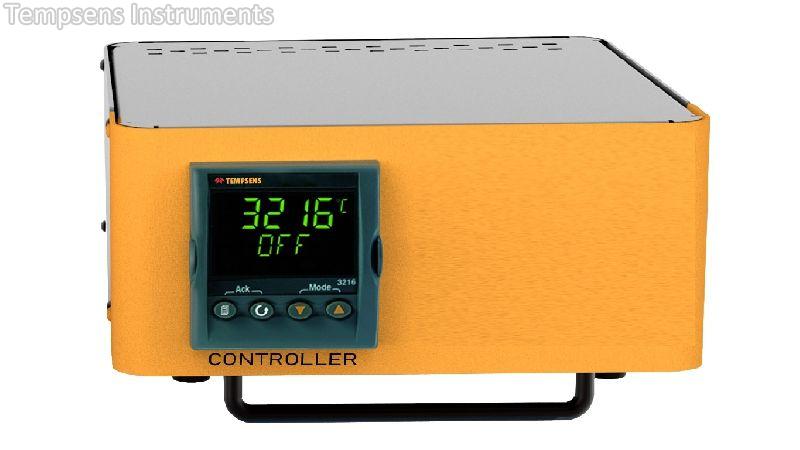

CAL FAST BB offers medium temperature range from 50 to 350°C. It is a highly stable standered black body calibrator for calibrating non-contact type sensor like pyrometer/IR Thermometers. The temperature of the calibrators is set and controlled by a self tuned PID controller with autometic super fine adjustment. in the double display the actual and set temperature values are soon. The BB cavity diameter is 60 mm with emissivity 0.97

Key Features:



  • Lightweight & portable.

  • Accuracy and performance.

  • Accredited calibration.



Accessories:



  • Software(Optional)

  • Operation Manual
