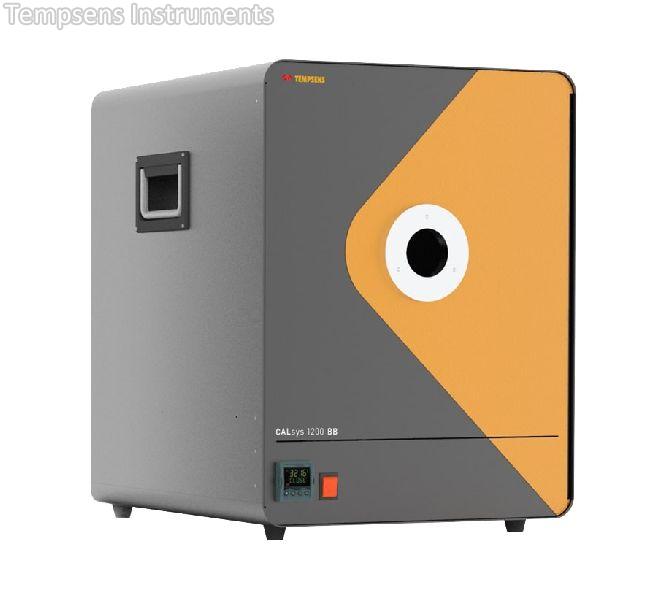

CALsys 1200BB Black Body

CALsys 1200BB Black Body
Price : 2.05 Lac / PieceGet Best Price

MOQ : 1 Piece(s)

Business Type Manufacturer, Exporter, Supplier, Retailer
Standard CE Standard
Temp Range 300 to 1200°C
Stability ±0.2°C at 300°C, ±0.3°C at 800°C, ±0.5°C at 1200°C
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Temperature Resolution
1°C
Time to Reach Min. Temp
1.5 Hrs
Controlling Sensor
Precision PT/RH-PT T/C
Emissivity
0.99±0.01
Radiation Cavity Type
Silicon Carbide
Dimension of Cavity
46 Mm Dia X 85mm Depth
External Aperture
40 Mm Dia
Computer Interface
RS - 232
Operating Temperature
20 to 45°C
Power Requirement
230 VAC, 2.5 KW
Dimensions of Cabinet
590(H) x 450(W) x 530(D) mm
Instrument Weight
50 Kg
Download
Payment Terms
T/T
Delivery Time
4-6 Weeks

CALsys 1200BB calibration source is a highly stable standard black body furnace for calibrating noncontact IR thermometer for the wide temperature range of 300 to 1200°C. The unique feature of this black body furnace is large temperature-controlled black body target with a diameter of 40 mm and 85mm which offer large view area for IR thermometer. The emissivity of the target is 0.99(±0.01).The temperature of the calibrator is set and controlled by a self-tuned PID controller with automatic super fine adjustment.

Key Features:

  • Wide Operating Range (300 to 1200°C)
  • High Stability
  • PC interfacing
  • Simple to use and cost-effective
  • Sighting tube


Accessories:

  • NABL accredited calibration certificate - 3 point
  • Software - Cal Soft including for setting bath temperature and monitoring the PV. graphical representations of PV/TIME with 2 hours data logging.
  • Operational Manual
  • Master Pyrometer (Optional)
Read More...

Yes! I am interested


Specification

Temperature Range 300 to 1200oC
Temperature Resolution 1.0oC
Stability ±0.2oC at 500oC
±0.3oC at 800oC
±0.5oC at 1200oC
Controlling Sensor Precision PT/RH-PT T/C
Method of Control Digital self tuned PID Controller
Time to Reach Max Temp 1.5 Hrs
Computer Interface RS - 232
Operating Temperature 20 to 45oC
Power Requirement 230 VAC, 2.5KW
Dimensions 580(H) x 500(W) x 675(D) mm
Radiation Cavity Type & Dimension Silicon Carbide,
50 mm Dia x 300mm depth
Sighting Tube Dimension 37±1mm dia & 140mm depth
Weight Approx 65 Kg
