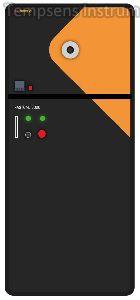

CALsys -30/110 Low Temperature Dry Block Calibrator

Link Copied

1.95 Lac / Piece

Edit

Business Type	Manufacturer, Exporter, Supplier, Retailer
Temperature Range	-30 to 110 °C
Stability	±0.04°C at -30°C, ±0.06°C at 0°C, ±0.07°C at 110°C
Uniformity	±0.05°C at -30°C, ±0.07°C at 0°C, ±0.08°C at 110°C
Click to view more

Product Details

Standard

CE Standard construction

Temperature Resolution

0.1°C

Time to Reach Min. Temp

10/20 Mins

Controlling Sensor

Precision PRT

Fixed Insert Construction

1 hole of 8mm and 2 hole of 6.5mm with 120mm length

Method of control

Self Tuned PID Controller

Computer Interface

RS - 232

Operating Temperature

20 to 25°C

Power Requirement

230 VAC, 500W

Dimensions

380(H) x 170(W) x 188(D) mm

Instrument Weight

11.70 Kg

The calibrator controller uses a precision RTD as a controlling sensor and controls the well temperature with thermoelectric cooler. To obtain and maintain a required temperature the controller varies the power to the heater via solid-state relay. There is one electricity driven fan which is situated under the heating chamber for cooling the heater. The dry block calibrator was designed for portability, moderate cost and ease of operation.

This dry block furnace is based on thermo electric cooling circuitry. This model provides an special design isothermal enclosure (Aluminium block) in which the thermocouple/RTD can be calibrated against the temperature of the calibrator.

Key Features:

Wide Operating Range (-30 to110°C)
High Stability
PC Interfacing
Simple to use and cost effective
Portability
Low temperature calibration facility upto -30°C
Conveniently handle and calibration
Light Weight

Accessories:

NABL accredited calibration certificate - 3 point
Software - cal soft including for setting bath temperature and monitoring the PV. graphical representations of PV/time with 2 hours data logging.
Operational manual
Carry case
