Industrial Furnaces

Leading Manufacturers, Exporters, Wholesaler, Retailer of Annealing Furnace, Bottom Loading Industrial Furnace, Conveyor Mesh Belt Furnace and Shuttle Kiln / Bogie Hearth Furnace from Udaipur.

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader
Maximum Temperature 1100°C
Heating Element Kanthal A1 / APM wire
Application Area Wire Annealing, Tube Annealing Furnace
Temperature Control Microprocessor Based Programmable PID Controller

Preferred Buyer From

Location Worldwide

Annealing furnaces are designed for the processing of SS or Copper wire, rod, strand, strip and tube products. These furnaces are ideally suited for copper, copper alloy, nickel, nickel chrome, titanium, stainless steel and refractory metals.

Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader
Maximum Temperature 1200 /1400°C/1600°C/1800°C
Insulation Multiple Layers of High Temperature Fiber Insulation Boards Ensure Minimum Heat Loss
Bottom Lifting Arrangement Bottom Lifting Plate Fitted with Dc Motor Ensures Smooth Lifting & Lowering

Preferred Buyer From

Location Worldwide

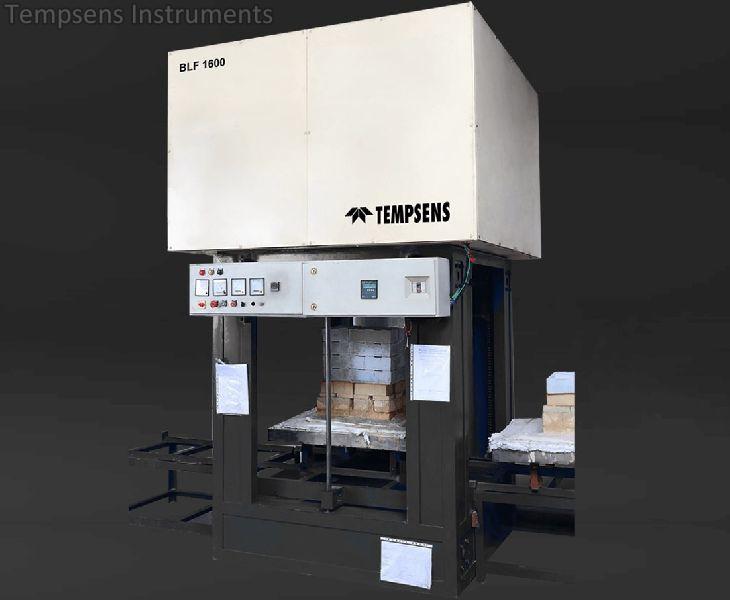

Industrial Bottom Loading Furnace is suitable for 1600°C as well as 1800°C application. The Industrial Bottom Loading Furnace is a kind of user friendly operating system that comes with smooth bottom lifting arrangement.

The Industrial Bottom Loading is widely used for firing and sintering of advanced ceramics and high temperature glass melting application. Industrial Bottom Loading Furnace offers high temperature accuracy in a range of ±1°C

Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader

Preferred Buyer From

Location Worldwide

Electric Conveyor mesh belt type furnaces are used for continuous heating purpose of large quantities of goods. Conveyor belt continuously rotate through the furnace electrically which poses the temperature (250°C to 1200 ºC). Material to be heated is kept at one end on belt which passes through the furnace.

Key Features

  • Continuous heating purpose of large quantities of goods. Material to be heated is kept on Conveyor belt which continuously rotate through the furnace.
  • Maximum temperature (ambient to 1150°C). The furnace is designed to operate with hydrogen atmosphere, cracked ammonia atmosphere, nitrogen and argon atmosphere.
  • Specially designed corrugated muffles (metallic) are used to withstand thermal expansion for certain processes. Metallic muffles may be of stainless steel or high nickel and chromium based alloys.
  • Energy efficient, Improve productivity and excellent repeatable heat treatment.
  • A variable speed drive unit with widely adjustable belt speeds allows the treatment of different thicknesses of materials and grades with varying temperature-time requirements.
Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader
Maximum Operating Temperature 1200°C/1400°C/1600°C
Heating Element Kanthal APM/Silicon Carbide/MoSi2
Insulation High insulating refractory light bricks/Ceramic Fiber Boards.
Temperature Control Microprocessor-Based PID Temperature Controller

Preferred Buyer From

Location Worldwide

The furnace bottom is constructed as a shuttle, covered with good heat-conducting boards and is being moved trackless with a steering gear. Below the furnace guiding rails are installed for facilitate the running in of the shuttle.

The insulation is according to the application as well as to the maximum temperature and mainly consists of high insulating refractory light bricks. The heating spirals made of MoSi2 heating element or Silicon Carbide heating element or Kanthal A1/APM heating wire on supporting tubes are located in the three walls.

Standard Application

  • Annealing
  • Stress Relieving
  • Hardening and Tempering
  • Normalizing
  • Post Weld Heat Treatment
  • Heat Treatment
Read More...
