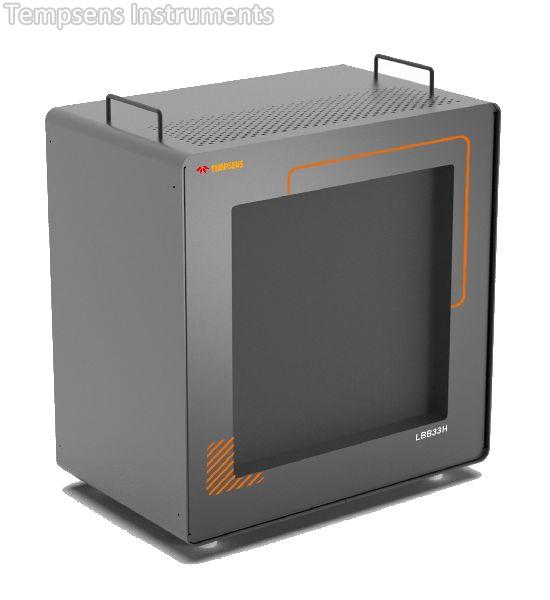

LBB33H Extended Area Black Body

LBB33H Extended Area Black Body
Business Type Manufacturer, Exporter, Supplier, Retailer
Temperature range from 50 °C to 500 °C
Exceptionally high emissivity of 0.98 ± 0.02
Temperature Range from 50 °C to 500 °C
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Exceptionally High Emissivity of
0.98 ± 0.02
Emissive Area
300 x 300 mm²
Emissive Area Uniformity
±3 at 400 °C
Emissivity
0.98±0.02
Stability
±0.1°C
Accuracy
±0.5°C
Display Resolution
0.1°C
Warm-up Time
60 min
Head Dimensions W X H X D (mm³)
550 X 550 X 260 Mm
Power Supply
230 VAC, 1 ph. 50 Hz
Remote Control
Ethernet, RS-232

Extended area Black body is defined by the large emitting surface area precise temperature control with good uniformity. The blackbody is designed to provide infrared radiation as an ideal blackbody emitter. Because of the large uniform surface area the body called extended area black body.

We separately provide high accurate programmable controller with black body source. High-accuracy chamber have been designed separately. The temperature of furnace is set or changes by the controller.

Key Features:

  • Remote control via Ethernet link, RS-232
  • Very High Stability and accuracy
  • Real-time display of surface and setpoint temperature
  • Large emissive area with high uniformity
