Twitter 30,000.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Operation Temperature and Humidity | 0°C ~ 50°C, <80% RH |
| Storage Temperature and Humidity | -10 °C ~ 60 °C, <70% RH |
| Power Requirement | (AA Size) batteries, up to 1500 hours of continuous work time |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Input Protection at Thermocouple Input
24V AC/DC Maximum
Dimension(Without holster)
115 mm X 70 mm x 30 mm (LxWxH)
Weight
Approx.0.25 Kg (Include Battery)
Thermocouple
K, S, E, T, J, R, B, N
RTD
Pt1000, Cu50, Cu10
mV
-100 to 200mV
mA
-2 to 24 mV
Resistance
0 to 500 Ohms
Unit
Ohms, mA, mV, °C, F, K
Resolution
0.000°C/0.000°F, 0.000 A/V/mA/mV
Download
ViewSpecifications 01
| RTD + T/C type | RTD + T/C range | Accuracy |
| Pt100 | -200 C ~ +850 C | ±0.02% RDG +0.060oC |
| Pt1000 | -140 C ~ +320 C | -- |
| Cu50 | -50 C ~ +150 C | ± 0.080oC |
| Cu100 | -50 C ~ +150 C | ± 0.060oC |
| Ω | -0.000 ~ 2200 Ω | ±0.02% RDG +50mΩ |
| mV | -100.0 ~ +200.0mV | ±0.015% RDG +10μV |
| mA | -2.0 ~ +24.0mA | ±0.03% RDG +3μA |
| K | -200oC ~ +1372oC | ±0.50oC |
| S | -0.0 ~ 1768oC | ±0.8oC |
| E | -200 ~ +1000oC | 0.40oC |
| T | -200 ~ +400oC | ±0.50oC |
| J | -210 ~ +1200oC | ±0.50oC |
| R | 0.0 ~ 1768oC | ±0.8oC |
| B | 300 ~ +1820oC | ±0.9oC |
| N | -200 ~ +1300oC | ±0.50oC |
Specificarion 02
| Operation Temperature and Humidity | 0 C ~ 50 C, <80% RH |
| Storage Temperature and Humidity | -10 C ~ 60 C, <70% RH |
| Power Requirement | (AA Size) batteries, up to 1500 hours of continuous work time |
| Input Protection at Thermocouple Input | 24V AC/DC Maximum |
| Dimension(Without holster) | 115 mm X 70 mm x 30 mm(LxWxH). |
| Weight | Approx.0.25 Kg (Include Battery) |
| Input | |
| Thermocouple | K, S, E, T, J, R, B, N |
| RTD | Pt1000, Cu50, Cu10 |
| mV | -100 to 200mV |
| mA | -2 to 24 mV |
| Resistance | 0 to 500 Ohms |
| Unit | Ohms, mA, mV, oC, F, K |
| Resolution | 0.000°C/0.000°F, 0.000 A/V/mA/mV |

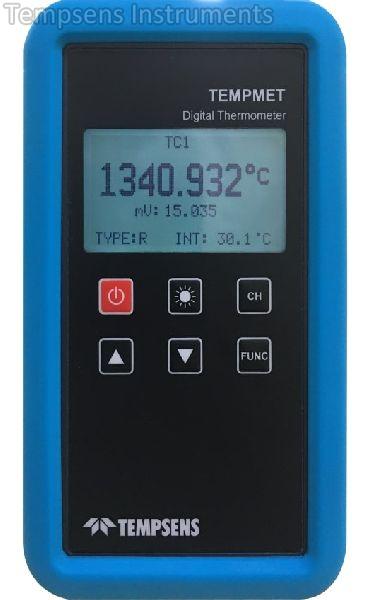

Looking for "Tempmet 09 Precision Thermometer" ?
